Emprint Haptic Embosser

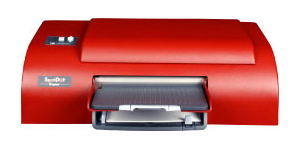

Emprint SpotDot: Tactile Graphics and Braille Embossing Printer

Emprint

The ViewPlus® Emprint SpotDot Powered by Tiger® is the first full-color ink Braille and tactile graphics printer.

Key Features:

1.      Twice as fast as the first Emprint™ model

2.      New easy-to-use operator panel with tactile buttons

3.      Choice of case colors - fire or ice (red or white)

4.      Uses the same paper and ink cartridges as an HP Inkjet printer

5.      Prints braille and ink on the same page

6.      Formats Word and Excel documents to braille automatically

7.      Creates raised visual images on paper from anything on the computer screen

8.      Includes Tiger® Designer - tactile graphics design software for Windows®

9.      Employs Tiger® technology - the new standard in embossed tactile graphics

Specifications:

1.      Printing Speed:

  • Emboss only: 50 CPS
  • Ink and Emboss: 40 CPS

2.      Ink Printing Resolution: 300 DPI

3.      Ink Print Quality: best, normal, draft

4.      Emboss Printing Resolution: 20 DPI

5.      Embossed Braille Dots: Adjustable: heavy, normal, light

6.      Embossed 3D dots: 8 grades including Braille dot height

7.      Replacement Cartridges:

  • C6656A Hewlett Packard Type 56 black
  • C6657A Hewlett Packard Type 57 tri-color

8.      Paper Sizes:

  • A4
  • US Letter (8.5" x 11")
  • Legal (8.5" x 14")

9.      Paper Weights:

  • Letter: 20 to 28 lb (75 to 105 g/m2 )
  • Envelopes: 20 to 24 lb (75 to 90 g/m2 )
  • Banner: 16 to 24 lb (50 to 90 g/m2 )
  • Card Stock: up to 110lb (200 g/m2 )

10.  Paper Handling:

  • 150 sheet input tray (copy paper )
  • 60 sheet input tray (Braille paper or card stock )
  • up to 20 envelopes, labels or banners.

11.  Connectivity: 1 USB (1.1, 2.0)

12.  Compatibility: Windows 7 (32- and 64-bit), Vista (32- and 64-bit), XP (32-bit)

13.  Dimensions:

  • Height: 6.7" (170 mm)
  • Width: 23.4" (596mm)
  • Depth: 16.8" (427mm)
  • Weight: 24.4 lb (11 kg)

14.  Operating Environment:

  • Recommended Temperature: 59 to 95 °F (15 to 35 °C)
  • Storage Temperature: -4 to 158 °F (-40 to 70 °C)
  • Humidity: 20 to 80% RH

15.  Power requirements: 100 - 240 VAR (+/- 10%), 50/60 Hz (+/- 3%)

16.  Power consumption:

  • Stand-by: 12 watts
  • Average ink printing: 26 watts
  • Average embossing: 64 watts
  • Heavy embossing: 110 watts

Website:http://www.viewplus.eu/products/ink-braille-printers/emprint-spotdot/
